This technical drawing document introduces RCW‑E12M/630‑20C outdoor medium‑voltage pole‑mounted vacuum auto recloser for product selection, manufacturing and on‑site installation reference. Complying with IEC 62271‑111:2019 standard, this PDF includes overall dimension drawings, mechanism partial‑view diagram, clear electrical parameters including BIL, creepage & clearance values, operating sequence and control voltage requirements. This recloser is fitted with built‑in CT, voltage sensors,

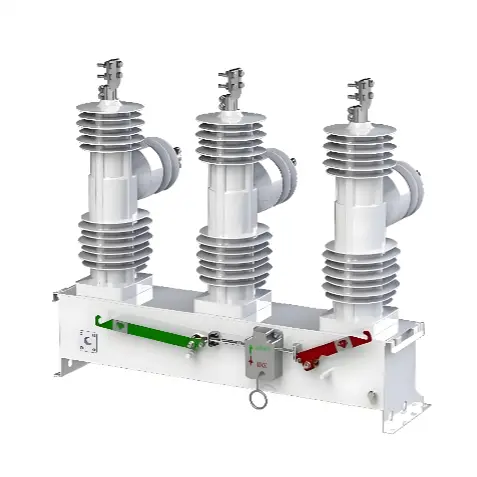

This PDF includes full outline dimension drawings of RCW-E15M/630-20C medium voltage vacuum auto recloser, covering product appearance, installation sizes and assembly specs for selection, production and field installation.RCW-E15M series MV vacuum auto recloser complies with IEC 62271-111 and ANSI/IEEE C37.60, KEMA type tested. It features composite insulation and permanent magnetic actuator for 15kV power system. Available rated current: 630A, 800A, 1250A; rated short-circuit breaking current:

This PDF contains complete outline dimension drawings of RCW-E24M/630-20C medium voltage vacuum auto recloser. It covers overall appearance, installation dimensions, component layout and mounting requirements of the pole-mounted recloser, supporting product selection, production and on-site construction.RCW-E24M series MV vacuum auto recloser complies with IEC 62271-111 and ANSI/IEEE C37.60, KEMA type tested. It features composite insulation and permanent magnetic actuator for 24kV power system.

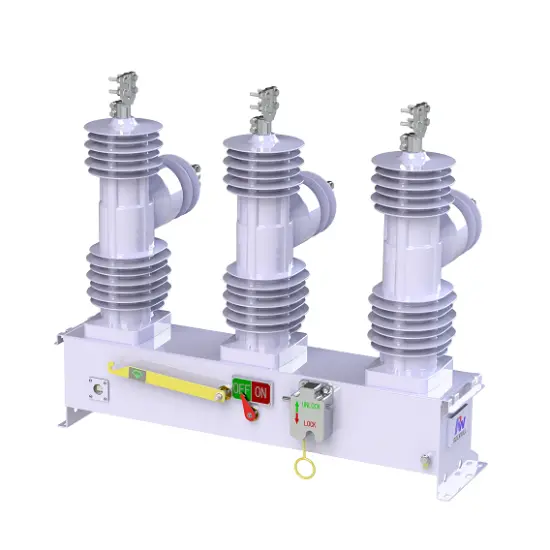

Outline drawing of RCW-F38M/630-20G medium voltage vacuum auto recloser, including overall dimensions and installation sizes for engineering reference.RCW-F38M series medium voltage vacuum auto recloser complies with IEC 62271-111 and ANSI/IEEE C37.60, KEMA type tested. It adopts solid epoxy insulation without SF6 gas and permanent magnetic actuator for 38kV power system. Available rated current: 630A, 800A, 1250A; rated short-circuit breaking current:12.5kA,16kA,20kA,25kA. Model RCW-F38M/630-20

Outline dimension drawing of RCW-E38M/630-20C medium voltage vacuum auto recloser, providing overall size and mounting data for installation design.RCW-E38M series MV vacuum auto recloser complies with IEC 62271-111 and ANSI/IEEE C37.60, KEMA type tested. It features composite insulation and permanent magnetic actuator for 38kV power system. Available rated current: 630A, 800A, 1250A; rated short-circuit breaking current:12.5kA,16kA,20kA,25kA. Model RCW-E38M/630-20C is rated 38kV, 630A, 20kA wit
