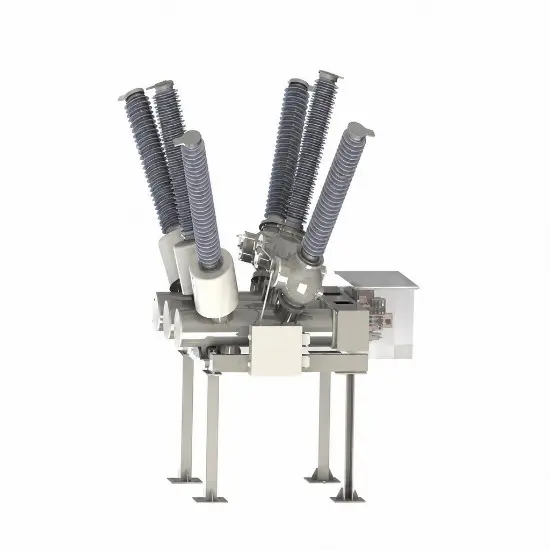

RHP-245 Hybrid Gas Insulated Switchgear
Zeichnung
English
PDF
With the development of the power industry, the miniaturization of power equipment is the trend of future development and also the urgent need of current power users. Miniaturized electrical equipment can not only save and and civil engineering costs, etc., but also reduce the use of greenhouse gas SF6, meeting the requirements of the environmental protection situation. Combining years of high-voltage electrical design experience and absorbing the world's most advanced technical design concepts,
Eingeschränkt.
RHB-330kV Live tank SF6 gas circuit breaker
Zeichnung
English
PDF
ROCKWILL RHB‑330 outdoor horizontal‑rotation disconnector applies robust aluminium alloy terminals, heavy‑duty mechanical load capacity, horizontal opening layout for 33 kV outdoor substation. It shall comply with IEC 62271‑102, and IEC 62271‑1 general specifications.
This drawing specifies outline dimension and performance indexes of RHD-362 SF6 dead tank circuit breaker.RHD-362 is SF6 gas insulated dead tank circuit breaker complying with IEC 62271-1 and IEC 62271-100 and KEMA type tested. Rated voltage 362kV, rated current up to 5000A, short-circuit breaking current up to 63kA. It adopts self-blast arc quenching and oil-free pure spring operating mechanism. Bushing-integrated CT is optional. It is widely applied for circuit switching and fault protection i
This PDF outlines structural layout and key technical data of RHD-245 SF6 dead tank circuit breaker.RHD-245 is SF6 gas insulated dead tank circuit breaker complying with IEC 62271-1 and IEC 62271-100 and KEMA type tested. Rated voltage 245kV, rated current up to 4000A, short-circuit breaking current up to 50kA. It adopts self-blast arc quenching and spring operating mechanism. Integrated CT inside bushings is optional. It is widely used for switching and fault protection in 245kV transmission su
Adopting SF₆ gas as insulation and arc‑extinguishing medium, this dead‑tank circuit‑breaker complies with IEC 62271‑100. It is integrated with bushing‑type current transformers, equipped with aluminium‑alloy connection terminals, and complete foundation mechanical load requirements are provided.
