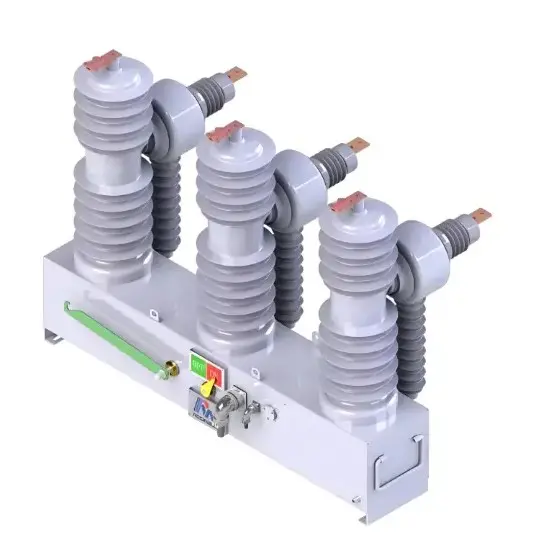

This PDF technical drawing is used for tender submission, pole structure design and factory witness inspection of RCW‑E38N/630‑20 pole-mounted recloser. It contains overall outline dimensions, crossarm installation footprint and phase-to-phase spacing, and marks BIL 170kV lightning impulse withstand level, specified creepage distance and minimum air clearance. The document defines actuator power requirements and auxiliary contact wiring definition, illustrates mechanical manual tripping function

Pioneer of China’s vacuum auto circuit recloser track and the first specialized source manufacturer — that’s who we are after decades of focused efforts. We’ve strengthened our foundation via tech breakthroughs, guided the industry through standard-setting, and built a fully independent full-chain system from core R&D to mass production and delivery.RCW-E38N series MV outdoor vacuum recloser complies with IEC 62271-111 and ANSI/IEEE C37.60, KEMA type tested. It features composite insulation

This document Includes design, manufacturing, installation and commissioning drawings for the RHP-245 GIS.RHP-245 is ROCKWILL hybrid gas insulated switchgear (HGIS) rated at 245kV, complying with IEC 62271-203, IEC 62271-100 and GB/T7674, KEMA type tested. It adopts self-blast SF6 circuit breaker with bistable spring or spring-hydraulic operating mechanism. Available rated current:2000A,2500A,3150A,4000A; rated short-circuit breaking current:31.5kA,40kA,50kA. Primary components including CB, DS,

This document contains the complete engineering drawings of the RHP-245(T) type Hybrid Gas Insulated Switchgear.RHP-245(T) is ROCKWILL three-phase common-tank hybrid gas insulated switchgear (HGIS) rated at 245kV, complying with IEC 62271-203, IEC 62271-100 and GB/T7674, KEMA type tested. It adopts self-blast SF6 circuit breaker with bistable spring or spring-hydraulic operating mechanism. Available rated current:2000A,2500A,3150A,4000A; rated short-circuit breaking current:31.5kA,40kA,50kA. All

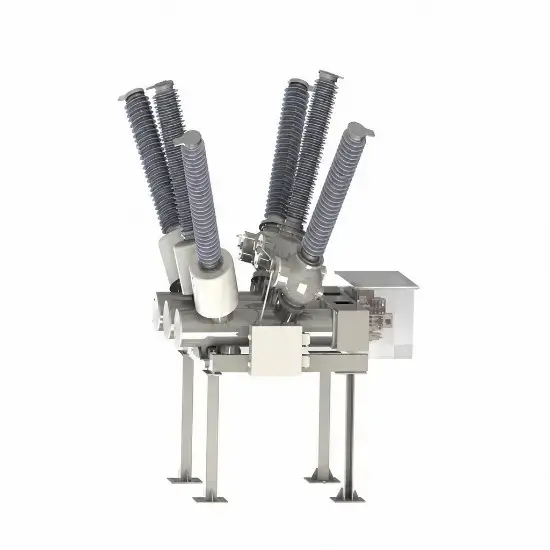

This drawing set provides detailed technical drawings of the RHP-170 Hybrid Gas Insulated Switchgear.RHP-170 is ROCKWILL segregated-tank hybrid gas insulated switchgear (HGIS) rated at 170kV, complying with IEC 62271-203, IEC 62271-100, KEMA type tested. It adopts self-blast SF6 circuit breaker with bistable spring or spring-hydraulic operating mechanism. Available rated current:2000A,2500A,3150A,4000A; rated short-circuit breaking current:31.5kA,40kA,50kA. CB, DS, ES and CT are enclosed in sepa
