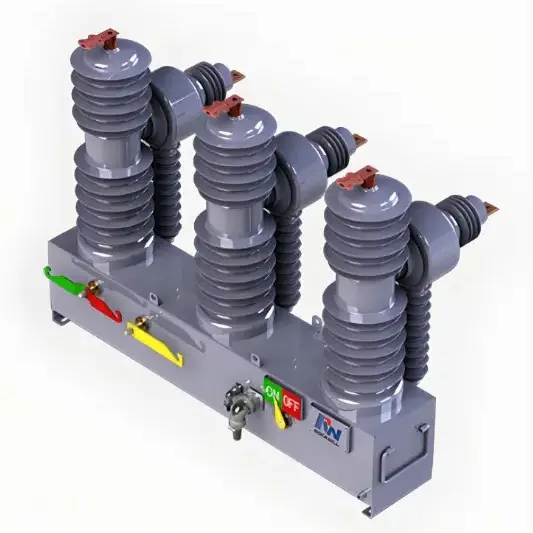

This technical drawing document introduces RCW‑F24N/630‑20 medium‑voltage outdoor pole‑mounted vacuum auto recloser for product selection, manufacturing and on‑site installation reference. Complying with IEC 62271‑111:2019 standard, this PDF contains complete outline drawings, overall structural layout, detailed installation dimensions and ON/OFF position indication, together with comprehensive electrical parameters including BIL 125kV, fracture and phase‑to‑earth creepage distance, phase‑to‑pha

This technical datasheet and outline drawing document covers RCW-F38N/630-20 38kV outdoor pole-mounted vacuum auto recloser for tendering, engineering selection and site installation reference. Designed to IEC 62271-111 standard, this PDF includes full assembly dimension drawings, phase spacing, mounting footprint, BIL impulse withstand level, creepage distance, electrical clearances and complete electrical ratings. This 38kV recloser adopts three-phase integrated tank structure, built-in CT and

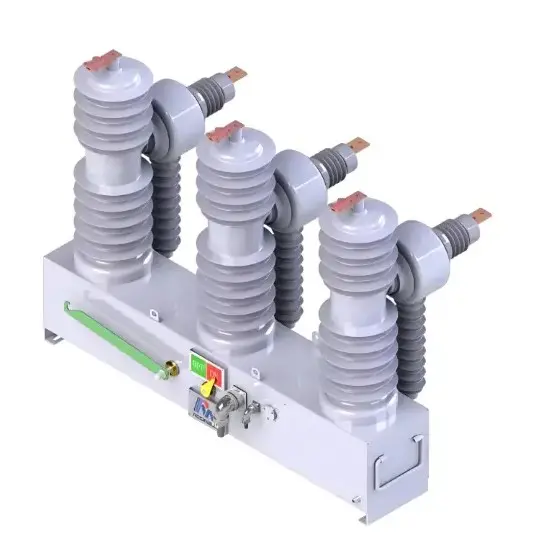

This technical drawing document introduces RCW‑E12N/630‑20 outdoor medium‑voltage pole‑mounted vacuum auto recloser for product selection, manufacturing and on‑site installation reference. Complying with IEC 62271‑111:2019 standard, this PDF provides single‑pole outline dimension drawing, and lists complete electrical parameters including BIL 75kV, fracture and phase‑to‑earth creepage distance, phase‑to‑phase & phase‑to‑earth clearance, mechanism operation voltage DC220V, control voltage DC2

This PDF technical drawing supports tender evaluation, project specification review and field installation preparation for RCW‑E15N/630‑20 pole‑mounted recloser. It contains full‑set outline mounting dimensions, BIL 110kV lightning impulse rating, fracture & phase‑earth creepage distance as well as phase‑to‑phase and phase‑to‑earth electrical clearances. The document specifies DC220V mechanism operation voltage and DC24V control voltage, and illustrates the matching requirement of operation

This PDF technical drawing is prepared for tender review, mechanical installation design and site acceptance of RCW‑E24N/630‑20 pole-mounted recloser. It includes full assembly outline dimensions, mounting footprint and phase spacing, and marks BIL 125kV lightning impulse withstand level, creepage distance and electrical clearance values. The document also defines actuator operating voltage and control supply requirements, illustrates the matching scheme of local position indicator and external
