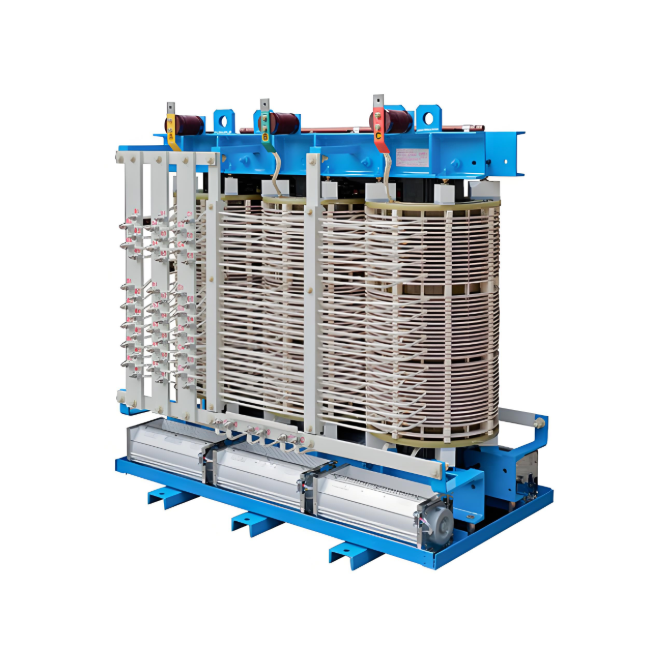

H-Bridge Rectifier Dry-Type Transformers

Attributes Description Documentation Resource Library

Key attributes

Brand	ROCKWILL
Model NO.	H-Bridge Rectifier Dry-Type Transformers
Rated frequency	50/60Hz
Rated capacity	2500kVA
Series	SG (B)

Description

Product Overview

Model: SG (B)10/12/14/18-315~2,500.Main application fields: HV motor drive applications.

Product superiority

High-performance product developed for HV motor drive applications. This product series supports 3kV and 6kV voltage levels, with each unit divided into 3 sections per phase, and can output 36-pulse or 48-pulse rectifier windings based on user requirements, achieving H-bridge rectification through phase shifting, meeting the high-precision needs of HV motor drive systems.

Product-related parameters

Voltage Levels: 3kV, 6kV
Rated Capacity: 315~2,500kVA
Rectifier output: 36-pulse or 48-pulse rectifier windings
Structural feature: 3 sections per phase, supporting phase-shifting connection.

H-Bridge Rectifier Dry-Type Transformers

Compliant with IEC 60076, IEC 60076-11, IEC 61378-1, IEEE 1653.1, GB/T 1094, GB/T 10228, GB/T 18494.1 and JB/T 10693-2022

Negotiable

Pricing calculator

Model

SG (B)10/2500

Warranty by

Whole life care manager

Whole-life care management services for equipment procurement, use, maintenance, and after-sales, ensuring safe operation of electrical equipment, continuous control, and worry-free electricity consumption.

The equipment supplier has passed platform qualification certification and technical evaluation, ensuring compliance, professionalism, and reliability from the source.
