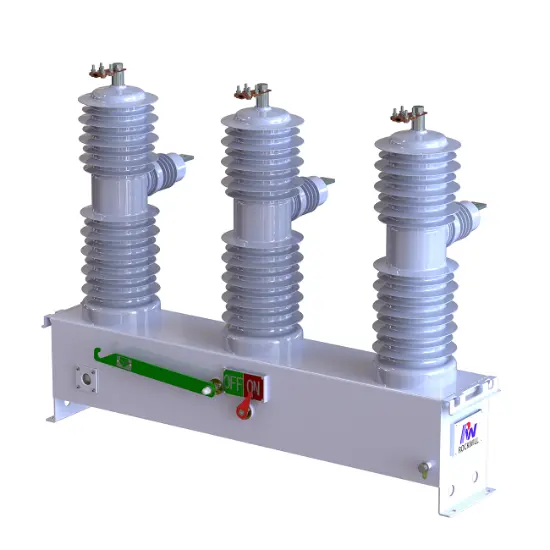

Intelligent Outdoor Vacuum Capacitor Switch 11kV 15kV 27kV 38kV

Overall Summary

The RCS series is a high-performance outdoor vacuum switch for capacitors launched by Rockwill, covering a range of configurations from economical to high-lifespan, high-capacity options suitable for different voltage levels and operating conditions. Its core advantages lie in long service life, high reliability, maintenance-free design, and electrical performance that meets international standards, aiming to help power systems achieve stable and cost-effective reactive power compensation.

Features

• Compact Structure & Small Footprint：Highly integrated design minimizes installation space, ideal for compact substation layouts.
• High-Grade Insulation Performance：Advanced insulation materials and technology ensure superior dielectric strength and weather resistance, suitable for harsh outdoor conditions.
• Intelligent Secondary Control & Monitoring：Supports automatic control, remote monitoring and multi-protocol communication, enabling precise capacitor bank switching for smart grid upgrades.
• Substation-Optimized Design：Tailored for substation applications, meeting the high reliability and long service life requirements of reactive power compensation systems.

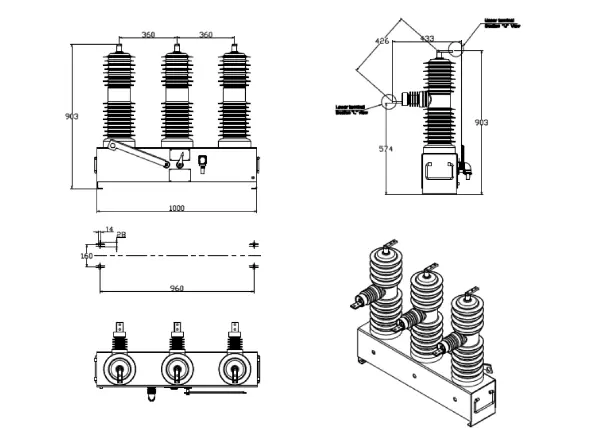

Product structure

The core structure of the RCS series outdoor capacitor switch consists of a vacuum interrupter, drive mechanism, incoming/outgoing terminals, insulation and protection components, and an optional intelligent controller:

• Vacuum Interrupter: Utilizes APG (Automated Pressure Gelation) process combined with silicone rubber coating, directly connected to the main terminal. This design reduces losses and enhances both insulation performance and weather resistance.
• Drive Mechanism: Includes three types—magnetic latching (long life), spring-driven (economical), and motor-spring (high capacity)—to meet various requirements for lifespan and cost.  Incoming/Outgoing Terminals: Made of T2 copper, with modular bushingtype terminations for easy installation and maintenance
• Insulation & Protection: Equipped as standard with IP64-rated waterproof joints and high-grade insulating parts, suitable for harsh outdoor environments.
• Intelligent Controller: Supports multiple communication protocols and remote monitoring, enabling automated switching operations.
• The overall design emphasizes compact structure, simplified transmission, high reliability, and low energy consumption, covering a wide range of applications from economical to long-life, high-capacity solutions.

Main technical parameters

Note: all above insulating components for BIL 170kV expanding using. Any question pls contact with our engineer.

Note: Standard made of T2 copper material, for 630A rated current using. With expanding range.
