Smart Prefabricated Compact Transformer Station

  • Smart Prefabricated Compact Transformer Station

Key attributes

Brand ROCKWILL
Model NO. Smart Prefabricated Compact Transformer Station
Rated frequency 50Hz
Maximum LV AC Inputs 34kV
Series YBS

Description

The Smart Transformer Station is a core component of modern power systems, combining advanced sensing, communication, computing, and automation. Its primary equipment performs real-time self-diagnostics, while the secondary system employs a fully digital and networked architecture.

By enabling data-driven monitoring, predictive fault analysis, and automatic control, the station enhances grid stability, boosts overall efficiency, reduces operational costs, and drives the industry’s green, intelligent evolution.

Smart Transformer Station Product Showcase Video

Key Features

  • Simplicity and Convenience: The Smart Transformer Station features simple structure, easy installation and convenient daily maintenance.

  • High Efficiency and Energy Saving: The Transformer Station adopts optimized design to lower energy loss and achieve outstanding energy-saving performance.

  • Intelligence and Advancement: Built-in intelligent monitoring system makes the Smart Transformer Station realize automatic operation, fault early warning and remote management.

  • Reliability and Durability: The Transformer Station adopts high-quality materials and strict manufacturing process, ensuring stable performance and long service life.

Technology parameters

YBS-3400

Category Item Specification
Input




Maximum LV AC Inputs 17
AC Power 3,400 kVA
Rated Input Voltage 800 V
LV Main Switches ACB (2,900 A / 800 V / 3P, 1 pcs), MCCB (250 A / 800 V / 3P, 17 pcs)
Output











Rated Output Voltage 11 kV, 13.8 kV, 15 kV, 20 kV, 22 kV, 30 kV, 33 kV, 34.5 kV, 35 kV
Frequency 50 Hz / 60 Hz
Transformer Type Oil-immersed, Conservator Type
Transformer Cooling Type ONAN
Transformer Tappings ±2 x 2.5%
Transformer Oil Type Mineral Oil (PCB-Free)
Transformer Vector Group Dy11
Transformer Min. Peak Efficiency Index Tier 1 or Tier 2 in Accordance with EN 50588-1
RMU Type SF6 Gas Insulated
RMU Transformer Protection Unit MV Vacuum Circuit Breaker Unit
RMU Cable Incoming / Outgoing Unit Direct Cable Unit or Cable Load Break Switch Unit
Auxiliary Transformer Dry Type Transformer, 5 kVA, Dyn11
Output Voltage of Auxiliary Transformer 400 / 230 Vac or 220 / 127 Vac
Protection




Transformer Monitoring & Protection Oil Level, Oil Temperature, Oil Pressure and Buchholz
Protection Degree of MV & LV Room IP 54
Internal Arcing Fault Classification of YBS  IAC-A 20kA/1s
MV Relay Protection 50/51, 50N/51N; Type I+II
Anti-rodent Protection C5 Medium in accordance with ISO 12944
Features

2 kVA UPS Optional
MV Surge Arrester for MV VCB Optional
General








Dimensions (W x H x D) 6,058 x 2,896 x 2,438 mm (20' HC Container)
Weight < 15 t
Operating Temperature Range -25℃ ~ 60℃
Relative Humidity 0% ~ 95%
Max. Operating Altitude 1,000 m / 1,500 m
MV-LV AC Connections Prewired and Pretested, No Internal Cabling Onsite
LV & MV Room Cooling Smart Cooling without Air-across for Higher Availability
Communication Modbus-RTU, Preconfigured with Smartlogger3000B
Applicable Standards  IEC 62271-202:2022, EN 50588-1, IEC 60076-1, IEC 62271-200, IEC 61439-1

YBS-6800

Category Item Specification
Input




Maximum LV AC Inputs 34
AC Power 6,800 kVA
Rated Input Voltage 800 V
LV Main Switches ACB (2,900 A / 800 V / 3P, 2×1 pcs), MCCB (250 A / 800 V / 3P, 2×17 pcs)
Output












Rated Output Voltage 11 kV, 13.8 kV, 15 kV, 20 kV, 22 kV, 30 kV, 33 kV, 34.5 kV, 35 kV
Frequency 50 Hz / 60 Hz
Transformer Type Oil-immersed, Conservator Type
Transformer Cooling Type ONAN
Transformer Tappings ±2×2.5%
Transformer Oil Type Mineral Oil (PCB-Free)
Transformer Vector Group Dy11-y11
Transformer Min. Peak Efficiency Index Tier 1 or Tier 2 In Accordance with EN 50588-1
RMU Type SF6 Gas Insulated
RMU Transformer Protection Unit MV Vacuum Circuit Breaker Unit
RMU Cable Incoming / Outgoing Unit Direct Cable Unit or Cable Load Break Switch Unit
Auxiliary Transformer Dry Type Transformer, 5 kVA, Dyn11
Output Voltage of Auxiliary Transformer 400 / 230 Vac or 220 / 127 Vac
Protection




Transformer Monitoring & Protection Oil Level, Oil Temperature, Oil Pressure and Buchholz
Protection Degree of MV & LV Room IP 54
Internal Arcing Fault Classification of YBS  IAC-A 20kA/1s
MV Relay Protection 50/51, 50N/51N; Type I+II
Anti-rodent Protection C5 Medium in accordance with ISO 12944
Features

2 kVA UPS Optional
MV Surge Arrester for MV VCB Optional
General








Dimensions (W &times; H &times; D) 6058 × 2896 × 2438 mm (20' HC Container)
Weight < 22 t
Operating Temperature Range -25℃ ~ 60℃(-13℉ ~ 140℉)
Relative Humidity 0% ~ 95%
Max. Operating Altitude 1,000 m / 1,500 m
MV-LV AC Connections Prewired and Pretested, No Internal Cabling Onsite
LV & MV Room Cooling Smart Cooling without Air-across for Higher Availability
Communication Modbus-RTU, Preconfigured with Smartlogger3000B
Applicable Standards IEC 62271-202:2022, EN 50588-1, IEC 60076-1, IEC 62271-200, IEC 61439-1

Schematic Diagram

YBS-3400

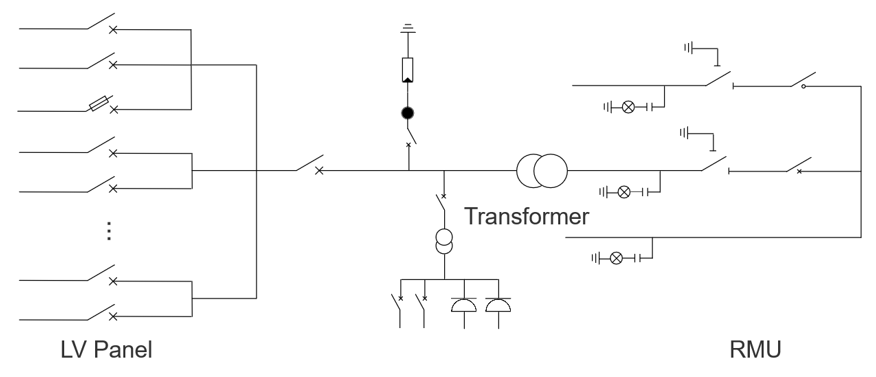

 Smart Prefabricated Compact Transformer Station YBS-3400 Schematic Diagram

YBS-6800

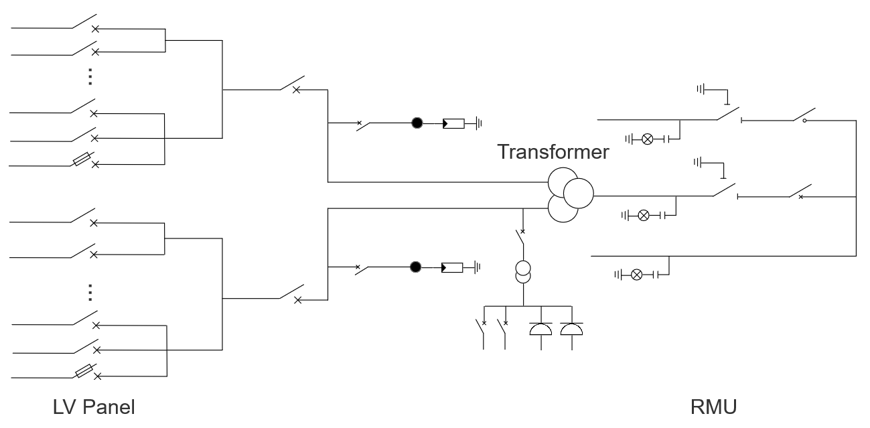

 Smart Prefabricated Compact Transformer Station YBS-6800 Schematic Diagram

Application Scenario

The Smart Transformer Station are widely applied in new energy power plants, urban and rural grid renovation, industrial parks, commercial complexes and residential communities, providing safe, stable and intelligent power distribution and transmission support for various power engineering projects.

Why choose Rockwill?

  • 20+ years experienced China Manufacturer, full production chain, OEM/ODM available
  • Wide voltage coverage: 0.38kV ~ 550kV, complete T&D product portfolio
  • IEC / ANSI / IEEE certified, third-party lab verified, ISO management system
  • Digital quality control, stable performance & competitive cost
  • Global service network across 100+ countries, one-stop grid solution & technical support

Documentation Resource Library Transformer Station

Rockwill Electric Group Profile
Public.
Rockwill Electric Group Profile
Brochure
English

Certifications Transformer Station

FAQ for Transformer Station

What compartments does the Rockwill outdoor compact prefabricated substation contain?

This prefabricated substation is split into three independent compartments: HV switchgear room, transformer room and LV distribution room.

What power supply modes can the Rockwill outdoor compact prefabricated substation support?

The prefabricated substation supports ring network, terminal and dual power supply modes with vacuum or SF6 breakers.

What transformer types are optional for the Rockwill outdoor compact prefabricated substation?

The prefabricated substation can be equipped with hermetically sealed oil-immersed transformers or dry-type transformers.

What thermal design does the Rockwill outdoor compact prefabricated substation adopt?

The prefabricated substation uses double-layer insulated roof and standard natural ventilation; temperature-controlled forced air cooling is optional.

Can the LV functions of the Rockwill outdoor compact prefabricated substation be adjusted?

Yes. As a China Manufacturer, we offer OEM/ODM service to customize LV distribution, compensation and metering functions.

Send inquiry
+86
Click to upload file
Download
