Outdoor Three Phase Pad-Mounted Transformer Manufacturer 10kV-35kV

  • Outdoor Three Phase Pad-Mounted Transformer Manufacturer 10kV-35kV

Key attributes

Brand ROCKWILL
Series ZGS
Rated voltage 10-35 kV
Low voltage 0.4 kV/ 0.69 kV
Frequency 50 / 60 Hz
Tank cooling ONAN

Description

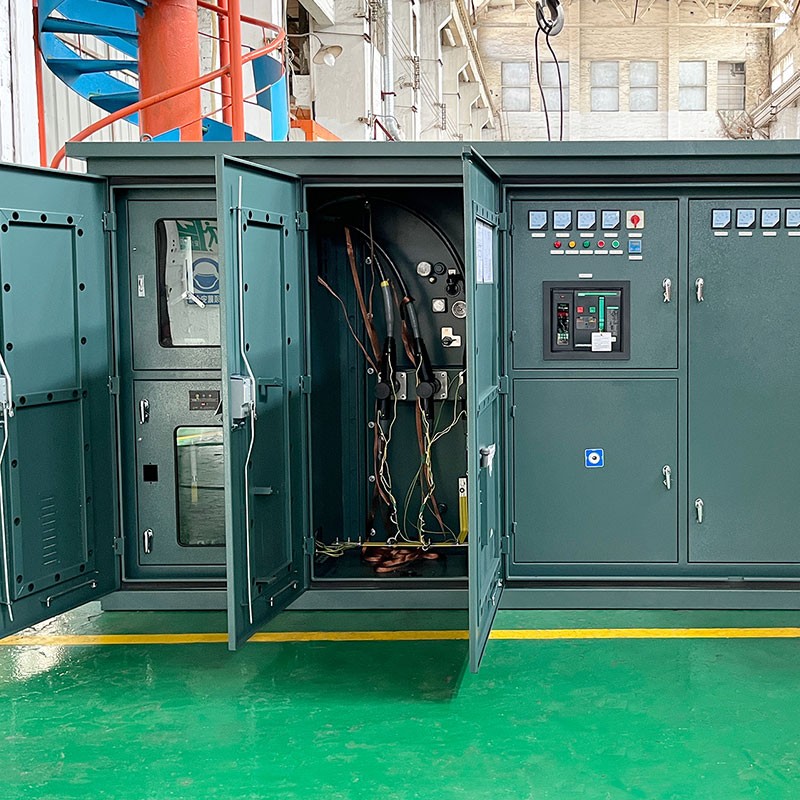

This Rockwill outdoor three-phase pad-mounted transformer, supplied by a professional China Manufacturer with flexible OEM/ODM customization, is an American-style unitized substation integrating a transformer, switchgear, fuses, tap changers, low-voltage distribution devices, and auxiliary equipment within a fully sealed, oil-immersed tank. Designed for urban power distribution, it is suitable for industrial parks, residential areas, commercial centers, and high-rise buildings.

The transformer is hermetically sealed with a corrugated radiator for efficient cooling. The HV compartment integrates load switches and fuses in transformer oil, while the LV compartment supports energy metering, reactive power compensation, and low-voltage distribution. The enclosure is constructed from corrosion-resistant materials for reliable outdoor installation, and we can adjust configurations via our OEM/ODM service to meet your project demands.

Rockwill Product Showcase Video

Key Features

  • Integrated American-style design: Combines transformer, HV switchgear, fuses, tap changer, and LV distribution in one sealed oil-filled tank
  • Fully sealed construction: Hermetically sealed corrugated tank prevents oil leakage and moisture ingress
  • Multiple voltage ratings : Configurable for a wide range of standard HV voltages to suit global distribution networks
  • Comprehensive LV functionality : Supports energy metering, reactive power compensation, and low-voltage distribution
  • Robust enclosure: Corrosion-resistant steel enclosure for long-term outdoor service
  • Dual-standard compliance :Designed to meet both IEC and ANSI/IEEE requirements for global markets
  • OEM/ODM available : Customized ratings, configurations, and enclosure designs available on request

Technical Parameters

Parameter Value
Rated voltage (HV) 10 / 11 / 13.8 / 20 / 33 / 34.5 / 35 kV
Maximum operating voltage 38.5 kV
Low voltage 0.4 kV (400 V) / 0.69 kV (690 V)
Frequency 50 / 60 Hz
HV protection Load switch + HV fuse (oil-immersed, plug-in type)
Transformer type Oil-immersed, hermetically sealed
Tank cooling Corrugated radiator (ONAN)
Enclosure material Corrosion-resistant steel
Standards IEC 60076, IEEE C57.12.00
Certification ISO 9001

Service Environment

Parameter Specification
Ambient temperature –30 °C to +40 °C
Altitude ≤ 1,000 m above sea level
Installation Outdoor, pad-mounted on concrete foundation
Enclosure Weatherproof, corrosion-resistant, suitable for public areas

Applications

  • Industrial parks and commercial centers
  • Urban residential communities and high-rise buildings
  • Urban and rural distribution networks
  • Mining operations and oilfields
  • Infrastructure and construction projects

Custom voltage ratings, transformer capacities, configurations, and enclosure designs are available on request. Contact Rockwill for project-specific design and quotation.

Why choose Rockwill?

  • 20+ years experienced China Manufacturer, full production chain, OEM/ODM available
  • IEC / ANSI / IEEE certified, third-party lab verified, ISO management system
  • Digital quality control, stable performance & competitive cost
  • Global service network across 100+ countries, one-stop grid solution & technical support

Solutions for Pad Mounted Transformer

  • LCC (Life-Cycle Cost) Analysis for Pad Mounted Transformers Targeting the Latin American Market
    Ⅰ. LCC Components & Market Specificity in Latin America Initial Investment Cost Equipment Procurement & Tariffs: Import duties in Latin America are high (e.g., Brazil's composite tax rate can reach 30%-50%). However, our company significantly reduces tariffs and transportation costs by partnering with local utilities or distributors (e.g., in Mexico, Colombia). Installation & Foundation Reinforcement: For earthquake-prone areas (e.g., Chile, Mexico), we provide customized seismic-
  • Smart Pad-Mounted Transformer Solutions for Mexico's Urban Distribution Networks
    Ⅰ. Challenges and Needs of Mexico's Urban Distribution Network Rapid Urbanization and Surging Power Loads Mexico's urbanization rate has reached 80%, with its population highly concentrated in central areas like Mexico City and Guanajuato State, resulting in high load density in the distribution network. Industrial expansion (especially automotive and electronics manufacturing) drives electricity demand. For example, Central Mexico has attracted over USD 10 billion in foreign investment, requ
  • Integrated Latin America Solution: Climate-Shielded Pad-Mounted Transformers with Localization Advantage
    Integrated Latin America Solution: Climate-Shielded Pad-Mounted Transformers with Localization AdvantageⅠ. Analysis of Market Demand and Challenges in Latin America Accelerated Energy Transition Latin America's renewable energy share exceeds the global average (hydropower 57% + rapid expansion of wind and solar), but frequent droughts are forcing countries to reduce hydropower dependence, promoting distributed integration of solar PV and wind. Pad mounted transformers need to be compatible wit

Reference Projects for Pad Mounted Transformer

  • Rockwill Delivers Customized Pad-Mounted Transformers to Support Key Infrastructure Project in Afghanistan
    Project OverviewIn March 2021, Rockwill prepared a batch of pad-mounted transformers for shipment to Afghanistan. These units were designed to meet the specific requirements of a local infrastructure project, demonstrating our capability to deliver tailored solutions for challenging environments and diverse operational needs.Technical SolutionThe shipment included pad-mounted transformers with a capacity range of 25kVA to 2500kVA and a voltage rating of 20/0.4kV. Engineered for reliability and e

Documentation Resource Library Pad Mounted Transformer

Rockwill Electric Group Profile
Public.
Rockwill Electric Group Profile
Brochure
English

Certifications Pad Mounted Transformer

FAQ for Pad Mounted Transformer

Can the configuration of the Rockwill three-phase pad-mounted transformer be customized?

Yes. As a China Manufacturer, we provide OEM/ODM service to tailor this pad-mounted transformer for your project.

Is the enclosure of the Rockwill three-phase pad-mounted transformer suitable for outdoor use?

Yes. The pad-mounted transformer uses corrosion-resistant enclosure materials to guarantee stable outdoor operation.

What cooling structure does the Rockwill three-phase pad-mounted transformer adopt?

The pad-mounted transformer adopts hermetically sealed design with corrugated radiator to realize efficient heat dissipation.

What components are integrated inside the Rockwill three-phase pad-mounted transformer?

This pad-mounted transformer integrates transformer, switchgear, fuses, tap changers, LV distribution and auxiliary equipment in one sealed oil tank.

Send inquiry
+86
Click to upload file
Download
