SF6-free Dead Tank Circuit Breaker manufacturer-145 kV

The RVD-145 Dead Tank Vacuum Circuit Breaker, launched by ROCKWILL, is a gas-insulated switchgear with a voltage rating of up to 145 kV. Its core features include the use of clean air as the insulation medium combined with vacuum interruption technology, aiming to achieve zero greenhouse gas emissions and zero global warming potential in power transmission.

Main Characteristics

Eco-Friendly Technology, Zero Environmental Impact:

• Zero SF₆ and other F-gases: Completely eliminates the use of traditional SF₆, a potent greenhouse gas.
• Zero greenhouse gas emissions: The insulation medium is clean air (80% nitrogen, 20% oxygen), which is safe and can be released directly into the atmosphere without contributing to the greenhouse effect.
• Zero GWP: Features a Global Warming Potential of zero.

Safe and Reliable, Zero Health Risks

• Non-toxic insulation gas: Clean air is non-toxic and harmless, ensuring operator safety.

• No toxic decomposition products: The interruption process occurs in a vacuum, preventing the generation of harmful substances.

• No special safety measures required during maintenance: Thanks to the inherent safety of the gas.

• No gas disposal required at end-of-life: Simplifies the decommissioning process.


Simple Operation, Zero Regulatory Burden

• No gas handling regulations or density checks: Eliminates the routine gas monitoring and maintenance required for SF₆ equipment.

• No gas reporting and accounting: Complies with and exceeds current andpotential future legislation restricting F-gases.

• No F-gas related training: Reduces training costs and complexity.


Excellent Performance, Zero Compromise

• Proven technology: Based on over 40 years of experience in medium-voltage vacuum interruption technology and more than 10 years in high-voltage applications up to 145 kV.

• High reliability: Delivers excellent interrupting performance at rated nominal current and rated short-circuit current without degradation.
• Low maintenance costs: The vacuum interrupter is hermetically sealed and maintenance-free over its entire service life, resulting in low operational costs throughout the lifecycle.

• Long service life: An expected lifetime of over 50 years and a first major inspection interval exceeding 25 years.
• Wide applicability: Suitable for a broad ambient temperature range from -50°C to +55°C. The insulating medium carries no risk of liquefaction, making it particularly suitable for low-temperature applications. It can be installed both indoors and outdoors.

Technical specifications

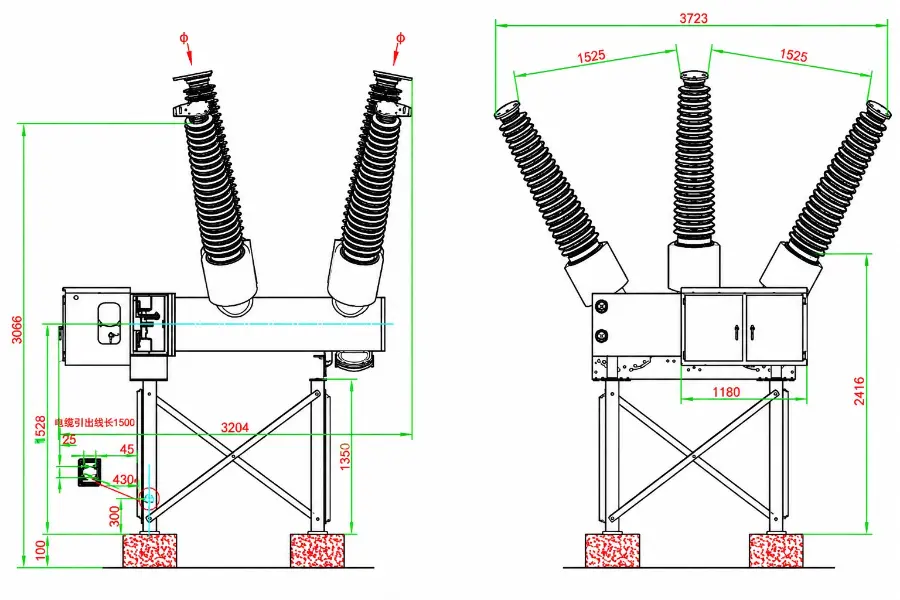

Drawings of RVD-145 SF6-free Dead Tank Circuit Breaker

Dimensions

Service environment
