Three Phase Z-type Oil-Immersed Earthing Transformer OEM China 10kV-35kV
Key attributes
| Brand | ROCKWILL |
| Series | JDS |
| Rated system voltage | 10kV-35kV |
| Connection group | ZNyn11 |
| Rated frequency | 50 / 60 Hz |
Description
Product Showcase Video
Winding Connection Schematics
Our oil-immersed zigzag earthing transformers are supplied in two standard winding arrangements:

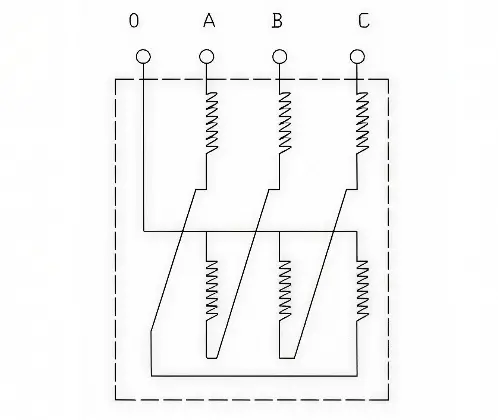

- ZN (without secondary winding, ): Dedicated neutral point creation, for connection to neutral grounding resistor or arc suppression coil.

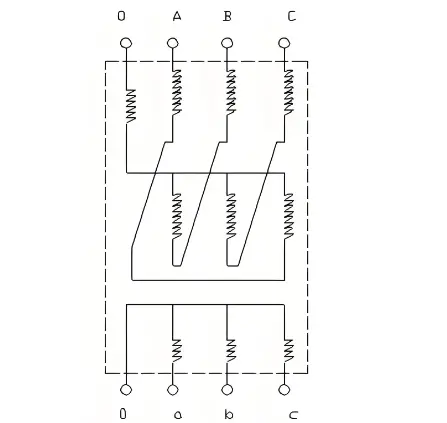

- ZNyn11 (with auxiliary secondary winding): Combined unit for neutral grounding and 0.4kV station service power supply.
The zigzag winding design features low zero-sequence impedance, enabling reliable earth fault current passage and stable neutral-point operation for medium voltage distribution networks.
Technical Parameters
Note：All parameters listed in the table above can be flexibly customized to meet specific project requirements. As a professional Grounding Transformer Supplier, we provide comprehensive Grounding Transformer OEM/ODM services, allowing you to tailor voltage levels, insulation standards, cooling methods, and enclosure configurations to ensure optimal performance for your power system.
Environmental Conditions
| Max ambient air temperature | +40°C |
| Max 24h average ambient air temperature | +35°C |
| Min ambient air temperature | -25°C |
| Altitude | ≤ 1000 m |
| Max relative humidity（24h average） | ≤ 95% |
| Max relative humidity（1 month average） | ≤ 90% |
| Max water vapor pressure（24h average） | 2.2 kPa |
| Max water vapor pressure（1 month average） | 1.8 kPa |
| Solar radiation | ≤ 1000 W/m² |
| Pollution level | II |
Solutions for Earthing Transformer OEM
-
Oil-Immersed Grounding Transformer for Chile’s Mining and Renewable Energy NetworksChile has one of the more developed power standards systems in South America, with a grid architecture shaped by its unique geography. The northern mining and renewable energy hubs, such as the Atacama Desert PV clusters, commonly operate at 34.5kV or 23kV medium-voltage levels, under demanding environmental conditions. To address high altitude, high salinity, intense solar radiation and long-distance transmission, Rockwill provides customized oil-immersed grounding transformer solutions. This s -
Earthing Transformer Solution for Egypt’s Distribution NetworkAs a major economy in North Africa, Egypt’s power system is facing growing pressure from rapid urbanization and industrialization. In core cities such as Cairo and Alexandria, as well as in the Suez Canal Economic Zone, the distribution network relies heavily on cable systems with high capacitive earth fault currents. Many areas are also located near desert environments, where operating conditions are harsh.1. Challenge AnalysisTechnical challengesHigh wind-blown sand, large day-night temperatu -
Southeast Asia Power Solutions: Zig-Zag Grounding Transformer for Cost-Effective & Reliable Grid StabilitySoutheast Asia Power Solutions: Zig-Zag Grounding Transformer for Cost-Effective & Reliable Grid StabilityZig-Zag transformers (also known as Z-connected grounding transformers) offer significant advantages in Southeast Asian power systems due to their unique design, which addresses tropical climates, grid structures, and development needs. Below is an analysis of their core benefits and application scenarios:I. Cost Efficiency & Space Optimization Low-Cost SolutionSimplified constructio -
Intelligent Maintenance Services and Sustainable Solutions for Z-Type Grounding TransformersIntelligent Maintenance Services and Sustainable Solutions for Z-Type Grounding TransformersZ-type grounding transformers are critical for stabilizing ungrounded or delta-connected power systems by providing a low-impedance path for zero-sequence currents during faults. Integrating intelligent maintenance and sustainability practices enhances their reliability while minimizing environmental impact. Below is a structured analysis of advanced solutions:I. Intelligent Maintenance Services Real-Time
Documentation Resource Library Earthing Transformer OEM
Certifications Earthing Transformer OEM
FAQ for Earthing Transformer OEM
Absolutely. We are a direct Chinese source manufacturer of Z-type earthing transformers with mature OEM and ODM capabilities.
You can customize multiple items including voltage class, zero-sequence impedance value, cooling mode, auxiliary winding configuration, surface paint standard, enclosure structure and factory test reports.
We can also adjust our design and documentation to comply with IEC standards and regional grid specifications, catering to the demands of EPC companies, electrical distributors and large power investors.
We offer two mainstream cooling configurations: ONAN, natural oil natural air cooling, which suits most conventional indoor and outdoor installation scenarios; and ONAF, oil natural air forced cooling, recommended for high-load working conditions or areas with high ambient temperature.
The transformer supports both indoor and outdoor installation. You can also choose an IP-rated protective cabinet, together with integrated CT, VT or isolation switch, to form a complete factory pre-assembled unit and lower the workload for EPC contractors during field installation.
Yes, an optional 0.4kV auxiliary winding with a maximum capacity of 500kVA is available for selection. With this optional winding design, the earthing transformer realizes dual functions.
It not only undertakes the core neutral grounding task for the medium voltage system, but also serves as a station service transformer to supply local low-voltage loads inside the substation.
This integrated design helps customers reduce procurement costs and save installation space on site.
This JDS zigzag earthing transformer covers standard system voltages including 10kV, 15kV, 20kV, 33kV and 35kV. Its capacity range spans from 30kVA up to 10,000kVA.
Key electrical parameters such as zero-sequence impedance, short-time fault withstand duration and insulation levels are not fixed; we can adjust all these indicators precisely according to your project’s earth fault protection scheme and local grid requirements.
Rockwill ZNyn11 zigzag earthing transformer is built to create a stable artificial neutral point for delta-connected or ungrounded medium voltage power grids ranging from 10kV to 35kV.
It provides a reliable dedicated path for single-phase earth fault current, effectively suppressing arc grounding overvoltage and ferromagnetic resonance overvoltage while balancing three-phase phase voltages.
This equipment can be matched with Petersen arc suppression coils or neutral grounding resistors, which is essential for earth fault detection and relay protection in distribution networks, photovoltaic and wind farm grid interconnection systems.
-
